Triumph Crankshaft Related Parts
ALL PRICES ARE IN CANADIAN DOLLARS
| 750 cc parts | ||
 |
70-9914
Connecting rod bolt 750cc. Sold each |
$20.00 ea |
 |

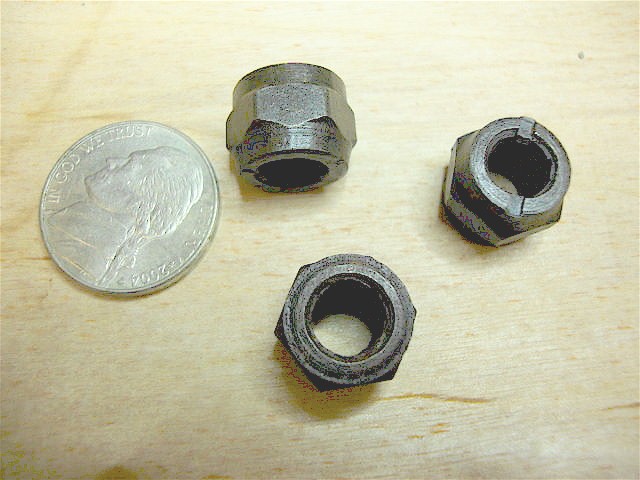

60-3761-
Connecting rod nut UNF . Philidas. |
$2.15 ea
|
 |
70-3903
Flywheel sludge trap tube. |
$27.00 ea |
 |
71-2800H
Plug for flywheel sludge trap tube. UNEF 650/750 |
$13.70 ea
|
 |

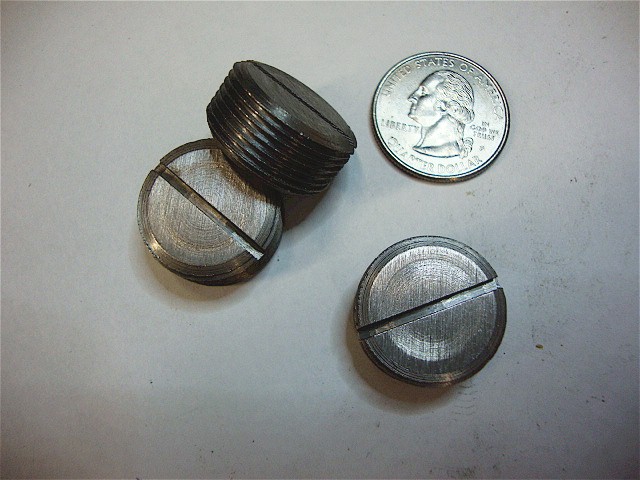

71-2800S
Plug for flywheel sludge trap tube. UNF 650/750 |
$8.00 ea
|
 |

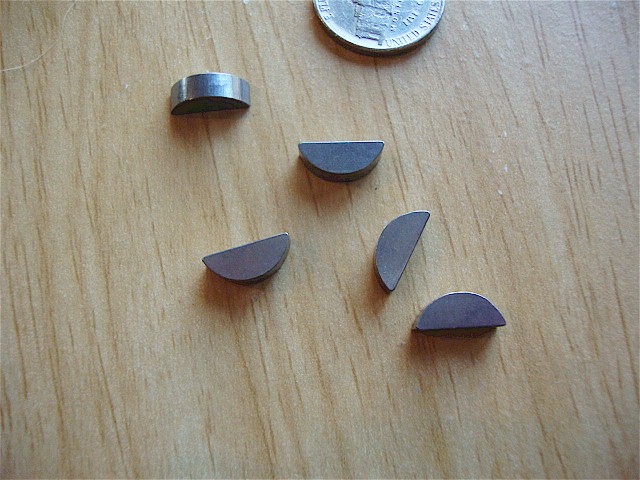

70-1580
Woodruff key, crank pinion, all years |
$5.00 ea
|
 |
71-0082-
Woodruff key, rotor |
$5.00 ea
|
 |

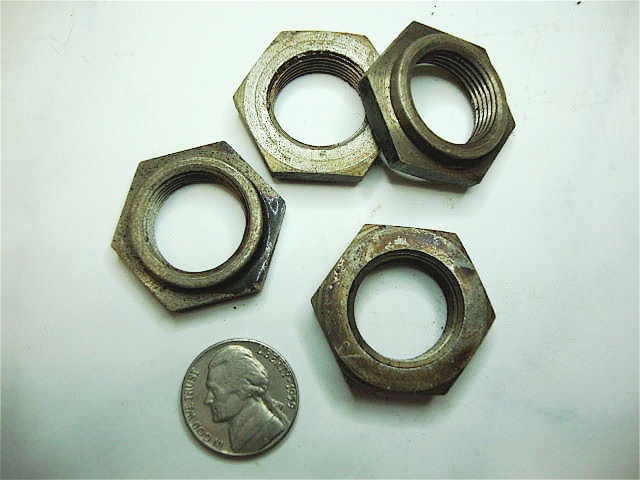

71-2877
Crankshaft nut, right side, 750cc 1972 650 |
$8.50 ea
|
 |
21-2182
Rotor nut 750 models only |
$4.40 ea
|
 |
70-3114
Stud, crankshaft (alternator side), 7/16x26, 1971 to 1973 650&750 |
$7.80 ea
|
|
21-2183
Stud, crankshaft (alternator side), 7/16x20, 1974 & up 650&750 |
$6.00 ea
|
 |
70-3975
Tab washer, rotor nut
|
$3.00 ea
|
| 650 cc parts | ||
|
70-6576
Connecting rod bolt 650cc. Sold each |
$23.00 ea |
|
60-3761-
Connecting rod nut UNF . Philidas. |
$2.15 ea
|
 |
70-1511
Bushing, wrist pin/connecting rod 650 cc |
$18.00 ea
|
|
70-3903
Flywheel sludge trap tube. |
$27.00 ea |
|
71-2800H
Plug for flywheel sludge trap tube. UNEF 650/750 |
$13.70 ea
|
|
|
71-2800S
Plug for flywheel sludge trap tube. UNF 650/750 |
$8.00 ea
|
|
70-3905
Plug for flywheel sludge trap tube. 7/8 x 20 CEI 650cc up to 68. |
$14.00 ea
|
|
70-1580
Woodruff key, crank pinion, all years |
$5.00 ea
|
|
71-0082-
Woodruff key, rotor |
$5.00 ea
|
 |
70-4565
Crankshaft nut, right side, 63-71 650cc 1972 650 use 750 nut 71-2877 |
$6.50 ea
|
|
70-3300 Clamping washer right side |
$14.70 ea
|
|
 |
70-3977
Rotor nut 650 models only |
$9.50 ea
|
|
70-3114
Stud, crankshaft (alternator side), 7/16x26, 1971 to 1973 650&750 |
$7.00 ea
|
|
21-2183
Stud, crankshaft (alternator side), 7/16x20, 1974 & up 650&750 |
$6.00 ea
|
|
70-3975
Tab washer, rotor nut
|
$3.00 ea
|
| 500 cc parts | ||
|
70-9914
Connecting rod bolt 500cc, Sold each |
$20.00 ea |
|
60-3761-
Connecting rod nut UNF . Philidas. |
$2.15 ea
|
 |
70-4003
Connecting rod small end bush. 1969 and earlier 500 |
$15.50 ea |
 |

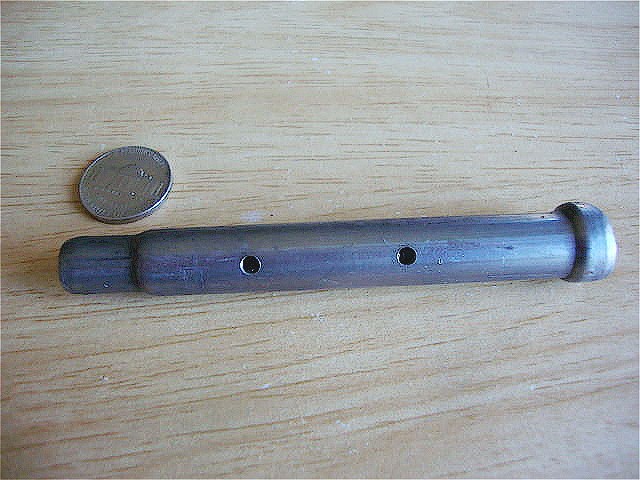

70-3999
Sludge trap tube 500 |
$33.00 ea |
 |
70-9492H Sludge trap plug, 500. Hex head |
$14.00 ea |
|
|
70-9492S
Sludge trap plug, 500. Slotted head |
$10.00 ea |
|
70-1580
Woodruff key, crank pinion, all years |
$5.00 ea
|
|
71-0082-
Woodruff key, rotor |
$5.00 ea
|
 |
21-1914
Crank pinion nut, 69 -up 500 |
$7.40 ea |
 |

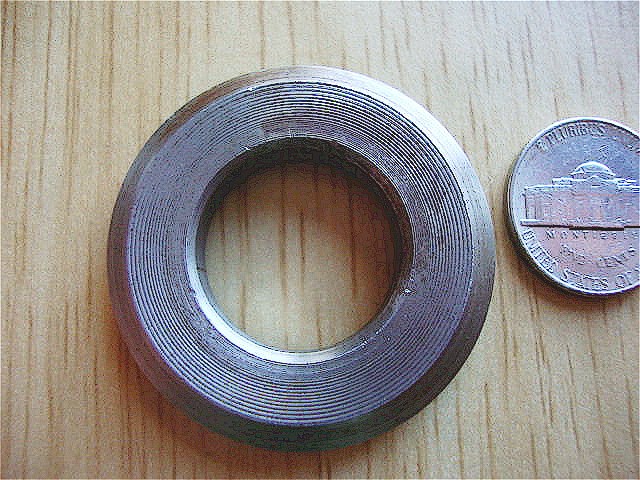

70-9503
Clamping washer crank pinion 500 |
$17.00 ea |
 |

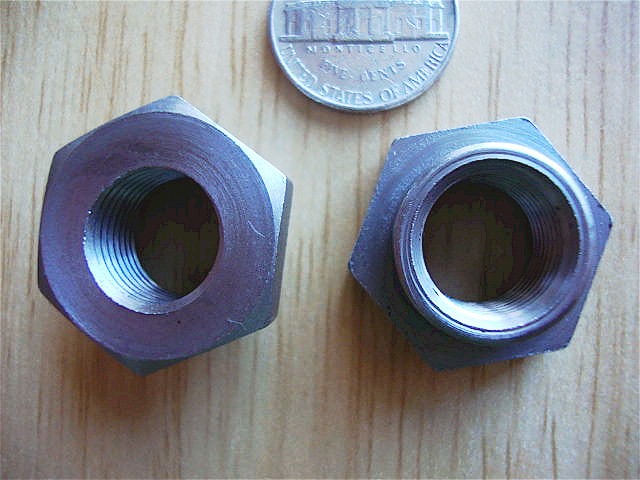

21-1915
Rotor nut, UNF |
$6.25 ea |
|
70-3975
Tab washer, rotor nut
|
$3.00 ea
|
