TRIUMPH POIF ENGINE

INDEX / SITE MAP  CONTACT US    HOME

ALL PRICES ARE IN US DOLLARS

FOR 650 PISTONS CLICK HERE


Cylinder barrel 500 cc. 1961-up



$399.00 ea


JCC Piston kit stock bore for 1958-67 500cc. Pins and clips included. Rings sold separately.

$79.00 pair

JCC Piston kit +.020" bore for 1958-67 500cc. Pins and clips included. Rings sold separately.

$79.00 pair

JCC Piston kit +.040" bore for 1958-67 500cc. Pins and clips included. Rings sold separately.

$79.00 pair

JCC Piston kit +.060" bore for 1958-67 500cc. Pins and clips included. Rings sold separately.

$79.00 pair
Pistons 500.JPG (83628 bytes) 18786/STD

JCC Piston kit standard bore for 1968-up 500. Pins and clips included. Rings sold separately.

$79.00 pair



18786/020G

Piston kit +.020 for 1968-up. Pins, clips and rings included. NEW OLD STOCK GENUINE TRIUMPH.

$139.00 pair

Pistons 500.JPG (83628 bytes) 18786/020

JCC Piston kit +.020 for 1968-up 500.Pins and clips included. Rings sold separately.

$79.00 pair

Pistons 500.JPG (83628 bytes) 18786/040

JCC Piston kit +.040 for 1968-up 500. Pins and clips included. Rings sold separately.

$79.00 pair



Pistons 500.JPG (83628 bytes) 18786/060

JCC Piston kit +.060 for 1968-up 500. Pins and clips included. Rings sold separately.

$79.00 pair



BOTH HASTINGS AND A/E HAVE ONE PIECE OIL RINGS

ECONOMY RING SETS HAVE 3 PIECE OIL RINGS


Hepolite/Hastings piston ring set, standard, 500cc twins, 1958-74. Set does 2 pistons.

hepolite piston rings now made by Hastings USA

$49.00 ea


Hastings rings.jpg (103369 bytes) R13570/020

Hepolite/Hastings piston ring set, +.020, 500cc twins, 1958-74. Set does 2 pistons.

hepolite piston rings now made by Hastings USA

$49.00 ea






Hepolite/Hastings piston ring set, +.040, 500cc twins, 1958-74. Set does 2 pistons.

hepolite piston rings now made by Hastings USA

$49.00 ea


CLEARANCE R13570/040E

Economy piston ring set, +.040, 500cc twins, 1958-74. Set does 2 pistons.

$9.00 ea


Hastings rings.jpg (103369 bytes) R13570/060

Hepolite/Hastings piston ring set, +.060, 500cc twins, 1958-74. Set does 2 pistons.

hepolite piston rings now made by Hastings USA

$49.00 ea





70-6869-

Wrist pin clips 500cc, 650cc

$1.50 ea




Camshaft, exhaust T100, E3325 type, 1969-up, also 70-9984

$197.00 ea


Camshaft, intake T100, E3134 type, 1970- up

$197.00 ea


Camshaft retaining plate screw 1/4-20 UNC.

$0.80 ea

 71-3447SS

Oil pressure release valve. Stainless steel. replaces 70-5896 & 71-2210

$79.00 ea




Inlet valve 500 cc 67-74

$26.00 ea


Exhaust valve 500 cc 67-74



$26.00 ea


Inlet valve 500 cc 59-66

$26.00 ea


Exhaust valve 500 cc 59-66



$26.00 ea

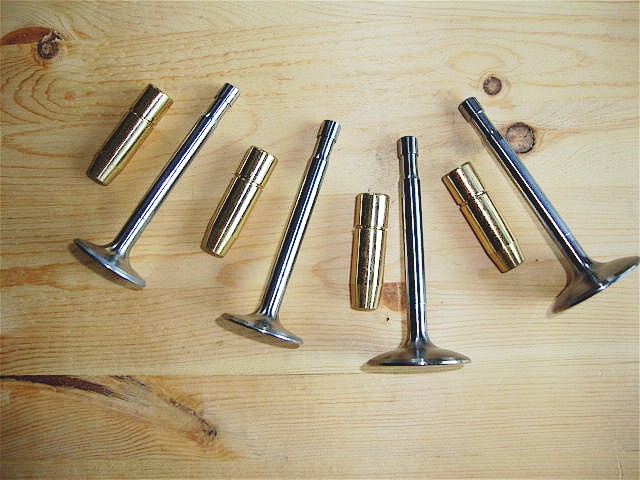

Kit VG 500.JPG (79575 bytes) Ktemporarily sold outIT V&G 500

Valve and bronze guide set, 1967-73 500 models. 4 valves and 4 guides. Does not include circlips 70-3209.

$159.00 ea



70-3209

 Circlip for valve guides. Sold each

$1.80 ea



70-3208

Valve guide, standard, cast iron, 500 cc. These require circlips.

$15.00 ea


Valve guide, standard, bronze 500 cc. These require circlips 70-3209.

$16.00 ea

71-3748-

Valve keepers 500, 650 & 750

$2.00 ea


Valve spring set all 500 twins

$29.00 set




Valve collar, upper, 500 cc models

$10.00 ea


Valve collar, lower, 500 cc models

$15.00 ea

21-0692

Cylinder base nut 12 point

$2.25 ea


Tappet adjuster, mushroom, 500cc, sold each



$9.50 ea




Tappet adjuster nut, 1/4 CEI, all 500s

$1.40 ea

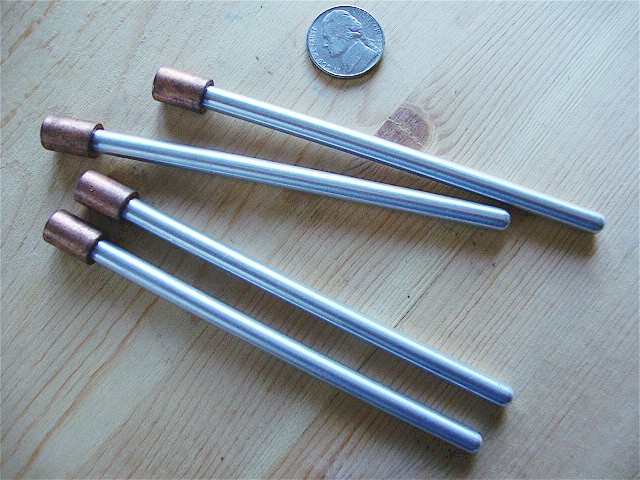

Pushrod, all 500 models, sold each, UK made

$17.00 ea


Pushrod tubes, polished alloy, 69-74 T100

$80.00 pr


Pushrod tube, chrome, 69-74 T100. Sold each

$35.00 ea

71-1707

Pushrod seal sleeve, 500, 650 & 750 models, 2 per engine

$4.00 ea

Thrust washer, 7/16"

$1.45 ea


Billet hex head tappet covers. Set of 4



$99.00 set






Thackery washer, 7/16", 500s

$1.90 ea


Tappet inspection cover. Sold each.

$13.50 ea


Rocker box clip, all 500s

$4.10 ea


Cam follower, R type,  500's

$59.00 ea


Cam follower, S type,  500's

$59.00 ea

70-9421

Oil pump 1963 & later 500 models

$68.00 ea

21-1864-

Stud, oil pump  UNF/UNC, 1969-up

$1.90 ea





21-1906-

Oil pump mounting nut, 1969 & later

$1.40 ea



70-3887-

Washer, oil pump, mounting, all models

$0.95 ea



70-6062-

Spring oil pressure valve. Also 70-7591

$4.00 ea



21-1927

Stud, gearbox, 5/16 UNF UNC 3 1/8" long

$6.50 ea


Rocker oil feed pipe, unit 500

$49.00 ea




Rocker pipe nut, zinc plate, 500

$2.80 ea

Crankcase protector blade 500cc models

$21.75 ea




Crank pinion nut, 69 -up 500

$5.10 ea



Clamping washer crank pinion 500

$11.00 ea



Nut, 3/4X20, LH Thread, exhaust cam T100 unf

$13.50 ea



Rotor nut, UNF

$5.00 ea

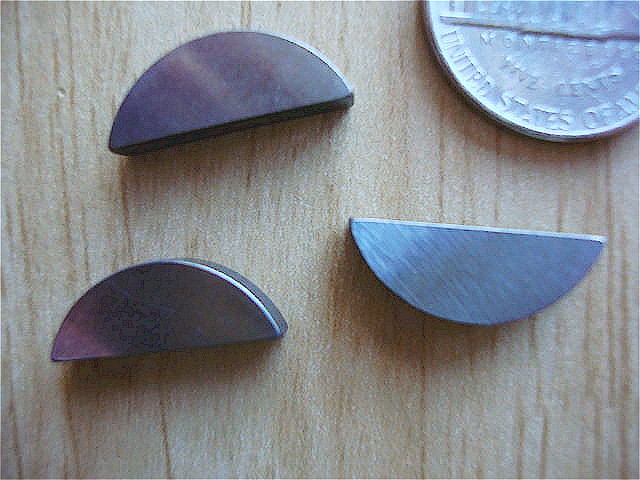

Rotor key, 500

$4.50 ea






Cam shaft key, 500

$3.40 ea



Woodruff key, rotor

$5.00 ea




Spacer, engine sprocket, 500

$11.00 ea



Sump plug 1969-on 500. Coarse thread

$16.00 ea


Sump filter, unit 500 models

$21.00 ea


Sump filter cork washer, unit 500 models

$0.80 ea


Sump filter spring, unit 500 models

$2.50 ea

70-3706

Connecting rod shell bearing set, 500cc unit models. Standard

$64.00 set

70-3706-010

Connecting rod shell bearing set, 500cc unit models. -.010

$64.00 set



70-3706-020

Connecting rod shell bearing set, 500cc unit models. -.020

$64.00 set



70-3706-040

Connecting rod shell bearing set, 500cc unit models. -.040

$64.00 set



70-9914

Connecting rod bolt 500cc. UNF thread. Sold each

$14.40 ea


Connecting rod nut UNF . Philidas.

$2.00 ea



21-2016-

Connecting rod nut UNF 6 point.

$3.90 ea




Sludge trap tube 500

$15.00 ea

97-0200-

Tappet block bolt

$3.20 ea



97-0200 SS-

Tappet block bolt, stainless steel

$6.00 ea




Washer, shake proof, 1/4"

$0.40 ea




Sludge trap plug, 500. Hex head

$9.00 ea


Connecting rod small end bush. 1969 and earlier 500

$12.50 ea

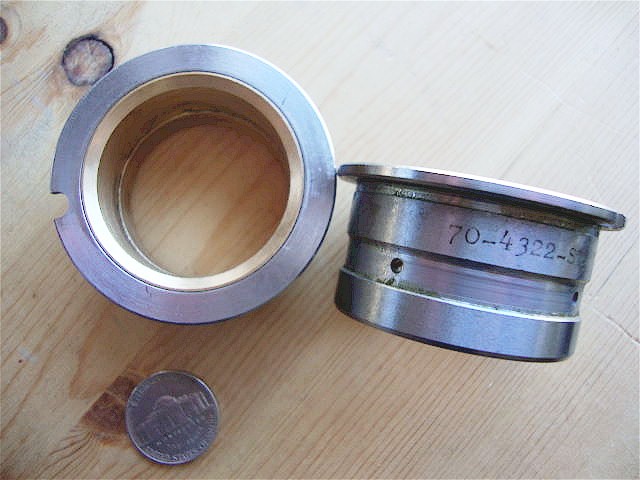

Crank bushing timing side (RH) STD, 1968 & earlier 500 models

$114.00 ea

60-4167

Crank bearing timing side (RH) also replaces #70-3835 1972 and later models. Engine #GE.27029 & later. 72mm OD

$32.00 ea


Crank bearing drive side (LH) 1969-74 500 models

$69.00 ea


Crank bearing timing side (RH) 1969-74 500 models



$29.00 ea



70-8737

Points cover, 500,650&750 twins

$14.95 ea

70-8737S

Points cover, stainless steel 500,650,750 twins

$17.95 ea

70-7354-

Contact breaker cover screw for stock 70-8737 cover.

$1.00 ea

70-7680-

Pillar bolt contact breaker, 1968 on

$6.60 ea

70-4747

Pillar bolt contact breaker, 1967 &earlier

$4.00 ea


Pillar bolt washer

$0.40 ea


Alloy points cover, 500, 650, 750 twins

click thumbnail picture for larger view see product notes

$40.00 ea


Alloy points cover, black anodized, laser etched. 500,650,750 twins

click thumbnail picture for larger view see product notes

$47.00 ea

70-4016

Patent plate

$7.00 ea



60-4255

Hammer drive screws for patent plate. BRASS. Package of 3



$3.00 pk3



60-4255SS

Hammer drive screws for patent plate. STAINLESS STEEL. Pkg of 3



$1.50 pk3



57-0989-

Timing cover dowel

$2.50 ea




Cylinder base stud, 1969 & later 500, 3/8 UNC UNF 11/16"

$3.60 ea




Cylinder base stud, 3/8 x 16 x 26 x  1 5/8"

$3.60 ea



14-1401-

Rocker box stud, 1969 & later 500, 650, 750

$2.45 ea




Rocker box stud kit. Contains six each of 14-1401 studs, 70-3302 washers, and 14-0301 nuts. 1969 & later 500, 650, 750.

$17.00 ea




Rocker box stud kit. Contains six each of 70-2980 studs, 70-3302 washers, and 82-0879 nuts. 1968 & earlier 500, 650.

$17.00 ea




Rocker oil feed bolt, 500

$7.00 ea




Cylinder head bolt all 500's

$10.00 ea


Torque stay cylinder head bolt all 500's

$14.00 ea


Cylinder head bolt all 500's

$8.50 ea

82-2184-

Cylinder head bolt washer
$1.40 ea
