TRIUMPH 500 CHASSIS

TRIUMPH Pre OIF CHASSIS

ALL PRICES ARE IN US DOLLARS

	83-1798 Gas tank. 2.5 gal US style. 63-70 650s. TR6C requires special mounting hardware. Bare steel. $10.00 shipping. Use 83-0031T styling strip for this tank.	$389.00 ea
	83-0031 Styling strip. Chrome. 1969-70 2.5 gal US tank.	$62.00 ea
	83-0031 T Styling strip. Chrome. 1963-70 2.5 gal Emgo tank.	$62.00 ea
	83-0032 Styling strip. Chrome. 1969-70 4 gal UK tank.	$62.00 ea
	83-0007temporarily sold out Tank styling strip, 69-72 500cc models	$79.00 ea
	83-0008temporarily sold out Tank strip hook.	$8.70 ea
	temporarily sold out83-5147 Grab rail, chrome, 1971-74 500	$139.00 ea

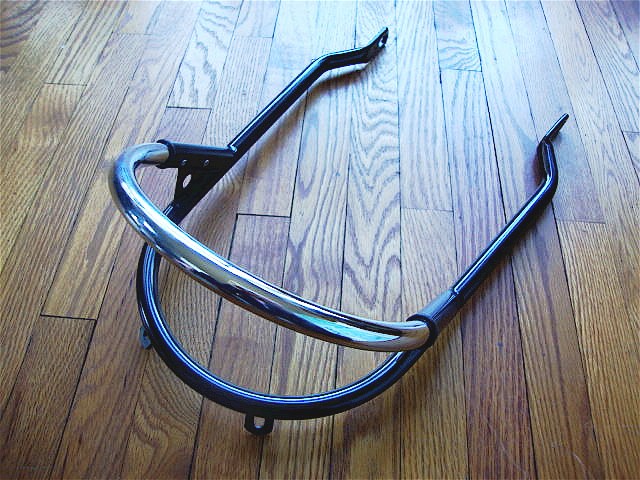

	temporarily sold out83-1571 Grab rail, chrome, 1970 500, 650 chrome & black	$139.00 ea

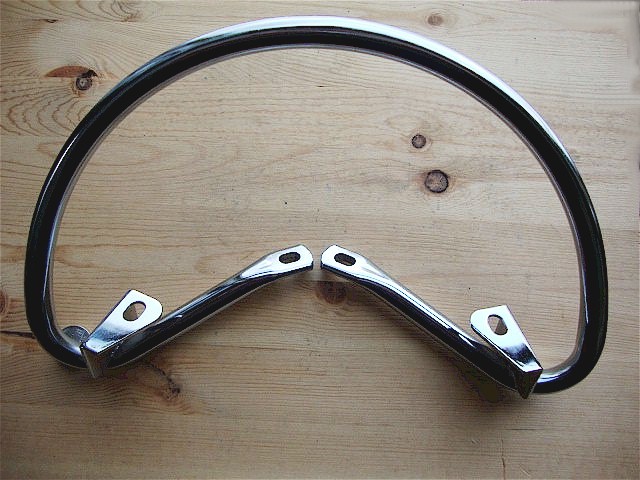

	82-9498 Grab rail, chrome, 1969 500,650	$99.00 ea
	82-6915 Bracket, fender bridge. 500 & 650	$23.00 ea
	82-6031 Backing bracket, fender clip.	$5.00 ea
	82-6965 not available Rear fender fits 500 and 650 models prior to 1971. Undrilled polished stainless steel with lip on rear edge. CLICK HERE for more pictures.	$00 ea
	97-1675not available Front fender fits 500 and 650 models prior to 1971. Polished stainless steel. Rolled edge. 4 holes drilled and stud welded on for one hole lower stay. CLICK HERE for more pictures.	$00 ea
	97-1678 Front fender stay, lower, 1 tab, black	$47.00 ea
	97-3886 Front fender stay, lower, 2 tab, chrome	$56.00 ea
	82-9369 Foot rest, passenger. Mount, peg and rubber. UK made. Sold EACH.	$53.00 ea
	81-5102 Speedo Black Face 150 mph fits 1968 to 1978 650, 750 models. 1.25/1 ratio. Stock bulb holders will not fit. New bulb and holder included. NOTE: This will NOT work with the 500s stock speedo drive. You must use a 1.25:1 or 15:12 ratio drive with a 3/4 inch hole. 99-9994 below will do the trick. click on image for larger picture	$49.00 ea
	80-1076 Speedo, black face face, 120 mph fits 1963 to 1967 650 and 63 to 73 500 models. 2/1 ratio. Stock bulb holders will not fit. New bulb and holder included.	$77.00 ea
	80-1077 Speedo, gray face, 120 mph fits 1963 to 1967 650 and 63 to 73 500 models. 2/1 ratio. Stock bulb holders will not fit. New bulb and holder included. click on image for larger picture	$77.00 ea
	80-6034temporarily sold out Speedo, gray face, 150 mph fits 1968 to 1978 650, 750 models.1.25/1 ratio. Stock bulb holders will not fit. New bulb and holder included. NOTE: This will NOT work with the 500s stock speedo drive. You must use a 1.25:1 or 15:12 ratio drive with a 3/4 inch hole. 99-9994 below will do the trick.	$77.00 ea
	99-9994 Speedo drive 15:12 ratio. 3/4" hole UK	$125.00 ea
	99-9994E Speedo drive 15:12 ratio. 3/4" hole EMGO	$75.00 ea
	97-1946 Instrument bracket, dual instruments 500 & 650 models	$42.00 ea
	97-2138 Instrument bracket, single instrument.	$21.00 ea
	97-1929 Metallastic bush, speedo & tach mount	$13.00 ea
	97-1701 Shoulder nut, speedo mount, TR6C, T100C.	$7.00 ea
	97-1702 Spacer for speedo/tach shoulder nut 97-1701	$5.00 ea
	81-5103 Tachometer, 8000 RPM fits 1968 to 1974. Stock bulb holders will not fit. New bulb and holders included. click on image for larger picture	$49.00 ea
	temporarily sold out80-6035 Tachometer, gray face, fits 1968 to 1974. Stock bulb holders will not fit. New bulb and holders included. click on image for larger picture	$67.00 ea
	temporarily sold out71-4138 Tachometer gearbox, 1969 and later 500 models.	$79.00 ea

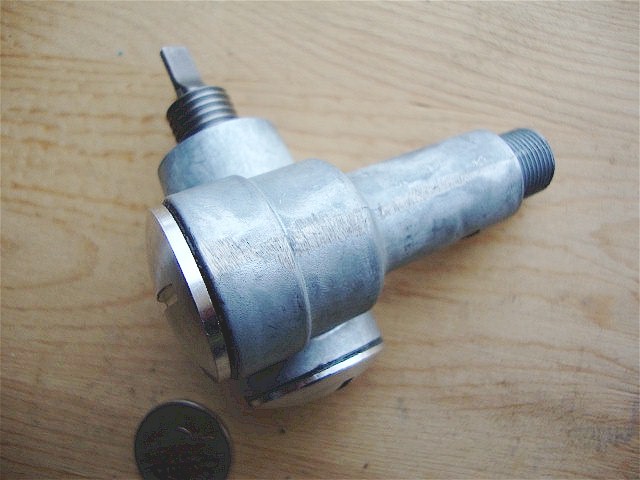

	temporarily sold out70-5755 Tachometer gearbox, 1963 to 1968 500 models. RH thread	$129.00 ea
	RS075 Tank mounting kit 67-68 500cc, 67-68 650cc	$37.00 kit
	RS076 Tank mounting kit 69-74 500cc, 69-70 650cc	$37.00 kit
	82-0967- Tank mount rubber, rear	$1.10 ea
	82-5228- Tank mount rubber, front, 2 req'd	$1.00 ea
	82-5229- Tank mount rubber, front, 2 req'd	$1.00 ea
	82-5336- Tank mount rubber, rear, double spigot	$1.70 ea
	82-3814 Cupped washer for central tank mount, some parts books read 83-3814.	$2.40 ea
	82-6039- Oil tank mounting grommet.	$1.95 ea
	82-6673- Side cover mounting grommet	$1.95 ea
	82-8091 Battery tray rubber pad	$4.75 ea
	82-8032 Battery strap buckle	$5.00 ea
	82-9355 Battery strap buckle	$7.00 ea
	82-6738 Steering lock with keys. 1967-74 500cc	$34.00 set
	21-0578 Steering lock retaining bolt	$2.90 ea
	PS181 Steering neck tapered conversion kit. 63-70 650 cc and 67-74 500 cc	$54.00 kit
	S70-4 Steering neck ball bearing, 3/16". 48 required. 1966 and earlier 500 cc.	$0.30 ea
	60-2364- Steering neck ball bearing, 1/4". 40 required. Also S70-3	$0.40 ea
	RS071 Steering headrace, cups, cones and bearings	$89.00 kit
	82-7707 Chain guard, 57-74, 350 &500. Black powder coat finish.	$219.00 ea
	82-6046 Chain guard extension	$36.00 ea
	82-4134 Chain guard bracket	$6.00 ea
	82-9387 Chain guard stepped bolt UNF	$5.30 ea
	83-0222 Captive nut, side cover/tool box	$2.75 ea
	83-1377 Rubber washer, tool box knob, 1969 - 74 500	$1.20 ea
	83-1357 Knob, side cover, tool box	$8.00 ea
	82-8024 Battery tray 1968 und up 500, 650	$40.00 ea
	82-3216 Oil tank cap 2 " chrome no dipstick	$26.00 ea
	temporarily sold out82-9659 Oil tank cap 2 " zinc with dipstick	$38.00 ea
	82-4047- Oil cap gasket, 2", also fork tubes.	$2.00 ea
	82-6898 Oil tank bracket 500	$11.50 ea
	82-3655 Oil tank feed pipe, upper	$4.25 ea
	82-3182 Union nut, oil tank pipe	$3.50 ea
	82-3179 Oil tank screen filter	$35.00 ea
	82-5343- Bolt, oil tank drain plug, 3/8-26 TPI CEI, .	$4.50 ea
	60-4262- Oil drain fiber washer	$0.45 ea
	83-1613 Vent pipe, Oil tank to T, 500, 650 models	$5.90 ea
	83-1614- Breather pipe, "D" shaped, rear fender, 39", 500, 650 models	$17.90 ea
	83-1610 - "T" piece, breather hose	$31.00 ea
	83-1615- Clip for D shaped hose	$2.90 ea
	97-3894- Screw for clip # 83-1615	$0.95 ea
	82-4717- Nut for #97-3894 screw, above.	$0.95 ea
	temporarily sold out82-8042 Side panel with tool tray. Metal. 68-70 650, 68-75 500	$139.00 ea
	70-4778 Torque stay, top motor mount. 500 &650 models.	$17.00 ea
	82-9092 Spacer, torque stay, top motor mount. 500 &650 models. Also 82-3069	$3.50 ea
	82-4229 Rear engine plate LH	$14.00 ea
	82-4230 Rear engine plate RH	$14.00 ea
	83-0035 Weld on side stand lug 1". 1968 and later Pre Oil in Frame models.	$45.00 ea
	83-1560 Side stand 1968 & later models models	$87.00 ea
	82-7021- Side stand pivot bolt	$6.45 ea
	14-1303- Nut, 3/8", lock, side stand	$0.95 ea
	82-8382 Side stand spring	$7.80 ea
	82-7693 Center stand, 67-74 500cc with 19" front wheel	$159.00 ea
	82-3617 Center stand spring, 59-74 500cc.	$3.95 ea
	82-4484 Center stand lock tab	$1.25 ea
	82-5944 Center stand lock tab. 1966-70 650s	$1.80 ea
	82-2725 Center stand nut	$2.10 ea
	82-5679 Center stand washer	$2.10 ea
	82-5678 Bolt, center stand 1/2-20 CEI	$4.90 ea
	21-1978 Bolt, center stand. 1969-70 650s.	$5.50 ea
