Genuine Jones OEM replacement complete billet  rear hub assembly for T140 TR7 disc brake models, pre 1979, using Smith speedo drives. CNC machined from solid billet aircraft grade aluminum.

$350.00 ea






Genuine Jones OEM replacement complete billet  front hub assembly for T140 TR7 T160 disc brake models. Complete with axle. CNC machined from solid billet aircraft grade aluminum.

$350.00 ea






Jones billet alloy rear wheel hub. Fits 1963 to 1969 non QD models. Replaces 37-1472.CEI threads.

$185.00




Wheel cover plate, Stainless front 8" TLS. 9" OD, 69-70 650s, 69-73 500s

$40.00 ea

Wheel cover plate, Stainless, front 7" TLS. 8" OD,  69-72 500 S,C models

$40.00 ea
37-7041-

Wheel bearing. Replaces 57-1070.

$11.00 ea

37-0653

Wheel bearing. Replaces 37-7042

$11.00 ea



60-3552

Wheel bearing, Quick detach rear hub. Also S35-7 and 21-0357
$40.00 ea



37-1041

Wheel bearing, Quick detach rear hub.
$10.00 ea



37-1042

Felt seal for wheel bearing
$3.00 ea



37-1143

Washer, grease retainer, QD hub
$3.50 ea



57-0280

Snap ring, wheel bearing

$7.00 ea


Snap ring, RH, conical front

$7.15 ea

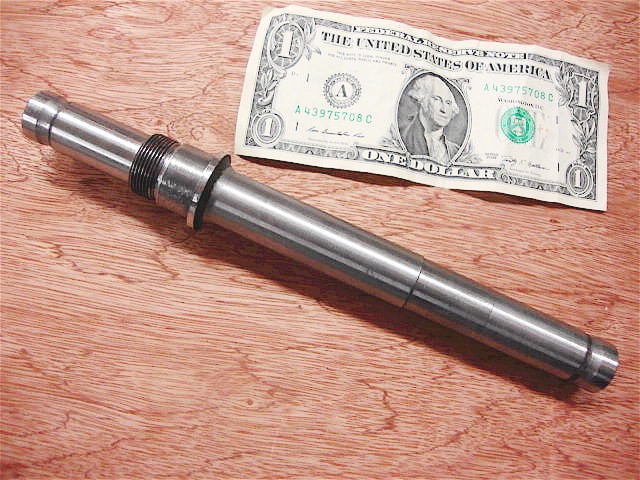

Axle, front, disc brake models.

$55.00 ea


Axle, rear, OIF models

$55.00 ea

83-2266

Axle washer rear.

$1.50 ea

14-1307

Lock nut, swing arm pivot & rear axle

$2.75 ea




Rear axle. 69-70  650 and 69-74  500. UNF threads. Can replace axle 37-1281 on earlier models if  21-0585 UNF nuts are used. 9 3/4 " long.

$35.00 ea
37-2058

Axle nut, front drum brake wheel

$3.40 ea





37-4133

Axle nut, front disc wheel

$9.35 ea

  21-2014
Axle nut, rear, outer, 3/4" UNEF
1969 -74 500, 69-70 650
$4.00 ea
21-0585

Axle nut, rear, outer, 1969 -74 500, 69-70 650

$7.60 ea
37-3750

Axle spacer RH conical hub rear

$9.00 ea

37-7003

Axle spacer RH disc hub rear

$24.95 ea



37-3746-

Axle spacer , speedo drive to swingarm, conical rear

$5.80 ea

37-1278

Spacer, rear axle wheel bearings.
$13.00 ea
37-1477

Wheel spacer

$7.25 ea
37-3751

Lock ring, speedo drive, 71-74 650 & 750 with conical hub

$19.00 ea



37-3588

Speedo drive ring. 1970 up UNF POIF 500-650

$25.00 ea
37-1476Temporarily sold out

Speedo drive ring. 1963-69 up CEI POIF 500-650
$35.00 ea
37-4181

Bearing retainer. Rear conical hub. SOME 1973 models. 1974 and later

$23.00 ea

37-3752

Bearing retainer. Rear conical hub.1971-72.  SOME 1973 models.

$23.00 ea



37-3759

Bearing retainer. Front conical hub.1971-72.

$26.00 ea

37-4134

Bearing retainer. Disc brake wheels front, rear.

$20.00 ea



37-0582

Wheel bearing lock  ring. LH thread.
Front
$18.00 ea
37-3587

Wheel bearing lock  ring. LH thread. Rear
$20.00 ea
37-1710

Set screw, wheel bearing retainer

$0.80 ea
37-1635

Washer, grease retainer, wheel bearing.

$4.50 ea

Dust cover/grease retainer, front disc hub, RH

$7.75 ea



37-1654

Dust cover/grease retainer, rear conical hub, RH

$9.60 ea



01-0170

Metal valve stem cap with core removal notch, pair

$1.50 pr





35-5101-

Rim savers. Protect rims from damage when using tire irons. Pair

$4.80 pr



35-0080-

Tire lever. 16" Dunlop type. You need 2 or 3 of these to do those tough tire changes.

$10.00 ea



37-3742

Rear chain - axle adjuster 1971 - 1979

$7.50 ea

83-3082

Swingarm / axle adjuster plate

$4.10 ea



14-0107

Bolt, axle adjuster, stainless

$2.15 ea



14-0301SS -

Nut, stainless steel  jam nut for axle adjuster

$0.95 ea




Axle adjuster, forged stainless, sold each

$19.00 ea

Axle adjuster end plate, sold each

$4.15 ea
