HaynesWSM

Work shop manual. 216 pages covers 1963 to 1983 650 & 750 models.

$29.95 ea





temporarily sold out83-2768-71

Grab rail, chrome, 650 models with round reflector gusset.

$149.00 ea





temporarily sold out83-2768-72

Grab rail,  chrome, 650 models with  reflector tab mounts.

$149.00 ea





temporarily sold out83-5145

Grab rail, chrome, 73-78 750 models

$149.00 ea



temporarily sold out83-7547

Luggage rack, 1979

$199.00 ea




Grab rail, chrome, 1971-74 500

$139.00 ea


Grab rail, chrome, 1970 500, 650 chrome & black

$139.00 ea


82-9498

Grab rail, chrome, 1969 500,650

$99.00 ea



83-3537

Torque stay top motor mount, 12 inches, 750 models

$30.00 ea



70-4778

Torque stay, top motor mount. 500 &650 models.
$17.00 ea

82-9092

Spacer, torque stay, top motor mount. 500 &650 models. Also 82-3069
$3.50 ea


Rear engine plate LH  500

$14.00 ea


Rear engine plate RH  500

$14.00 ea


83-7041-

Coil mounting tray. 1976 & later style. May be fitted to earlier models

$45.00 ea



71-2851

Sump bash plate , Oil in Frame models

$44.00 ea







sold out97-4270S

Front fender, 1971-72 models, stainless steel



$ ea



 sold out97-7039SS

Front fender, stainless steel, 1977- later. This fender has 5 holes. It has rolled front lip and edges, and knife edge bottom. May be used on 73-76 by using fender bridge 97-7004 (listed lower on this page).



$119.00 ea




Rear fender, stainless steel UNDRILLED 1976 and later models with rear disc brake. May be fitted to 1973-75 750 models.

$2xx.00 ea





83-9001B.JPG (41834 bytes) Front left side view. These fenders usually have scratches from the factory which can be polished out. No warranty on the scratches. Not show quality but a good fender for the money.
83-9001D.JPG (47966 bytes) Dimpled right side for rear brake reservoir.
83-5151

Fender bracket RH
$2.80 ea



97-4022

Front fender mounting bracket for 1971-72 models. Bike takes 4 brackets

$8.80 ea



97-4021-

Front fender mounting bracket bushing grommets for 1971-72 models.

$1.95 ea



97-4533

Front fender stay, front, 1973-76, ALSO 97-4547

$41.95 ea





temporarily sold out97-4534

Front fender stay, top, 1973-76, also 97-4550

$46.95 ea





97-4552temporarily sold out

Front fender stay, bottom, 1973 and later. Also # 97-4535

$65.00 ea



97-3886

Front fender stay, lower, 2 tab, chrome

$56.00 ea


97-7004

Front fender bridge. 77 and later.  May be fitted to 71 to 76 models.

$39.00 ea



83-4600
Rear fender bridge. 750 twins.
$20.00 ea



82-6915

Bracket, fender bridge. 500 & 650
$23.00 ea

82-6031

Backing bracket, fender clip.
$5.00 ea


82-6965 not available

Rear fender fits 500 and 650 models prior to 1971. Undrilled polished stainless steel with lip on rear edge. CLICK HERE for more pictures.

$00 ea


97-1675sold out

Front fender fits 500 and 650 models prior to 1971. Polished stainless steel. Rolled edge. 4 holes drilled and stud welded on for one hole lower stay.

CLICK HERE for more pictures.

$00 ea

97-1678

Front fender stay, lower, 1 tab, black

$47.00 ea



82-9369

Foot rest, passenger. Mount, peg and rubber. UK made. Sold EACH.

$53.00 ea



82-9279

Riders peg rubbers w/logo



$11.50 pr

83-7256-9

Riders peg rubbers 1979 - up

$12.00 pr





82-9051

Riders peg rubbers , short folding style for 71-72 TR6C

$18.00 pr



82-9054

Passenger peg rubbers

$8.00 pr

57-2330

Kick pedal rubber, open end

$3.75 ea

57-2450

Gear change lever rubber, 68 & up

$2.05 ea



57-2331

Center stand rubber

$2.90 ea



temporarily sold out83-2641

Chain guard fits 1971 and later. Bare steel.

$79.00 ea

14-0206-

Bolt, chain guard front,

$0.95 ea

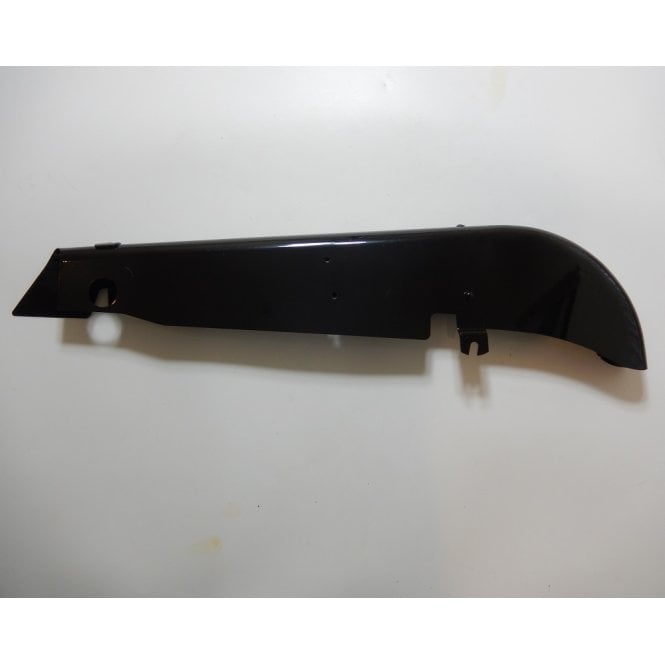

Chain guard, 57-74, 350 &500. Black powder coat finish.

$219.00 ea


Chain guard extension

$29.00 ea


Chain guard bracket

$6.00 ea

82-9387

Chain guard stepped bolt UNF

$5.30 ea

Battery tray 1968 und up 500, 650

$40.00 ea


83-2007

Washer, neck bearing

$7.60 ea





82-6738

Steering lock with keys

$34.00 set



21-0578

Steering lock retaining bolt

$2.90 ea




Side panel with tool tray. Metal. 68-70 650, 68-75 500

$139.00 ea


Captive nut, side cover/tool box

$2.75 ea


83-1377

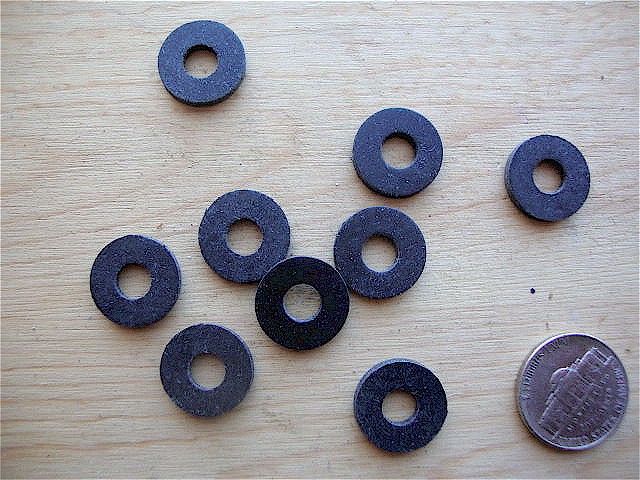

Rubber washer, tool box knob, 1969 - 74 500

$1.20 ea



Knob, side cover, tool box

$8.00 ea




RS019 temporarily sold out see more pictures

Retro style side cover kit. Allows use of round air cleaners. Plastic composite. Fits 71 and later.

$169.00 kit



MC15-0040-

Pre 71 air cleaner off set type for 900 Amal.  Threaded adapter included.

$18.00 ea





83-4807

Air cleaner cover 73-77 models. Tiger TR7 LH

$49.00 ea



83-4808

Air cleaner cover 73-77 models. Tiger TR7 RH

$49.00 ea



83-7067 temporarily sold out

Air cleaner cover 73-77 models. Bonneville T140 LH

$54.00 ea



83-7068 temporarily sold out

Air cleaner cover 73-77 models Bonneville T140 RH

$54.00 ea



83-7097-8

Side cover set for 1978 T140 Bonnie (not E)

$159.00 pr



83-7103-4 temporarily sold out

Side cover set for 1978 Tiger & 78 T140E

$189.00 pr



83-7305-6

Side cover set for 1979 and later T140 w MK II carbs.

$159.00 pr



83-7070

Side cover retaining spring

$3.20 ea



60-4150-temporarily sold out

Side cover name plate

$19.00 ea

82-4129-

Side cover name plate screw, rotor cover

$2.20 ea



60-4385

Side cover decal, adhesive back



$10.50 ea

60-4384

Side cover decal, adhesive back



$10.50 ea

60-3539

Screw for air box halves.
$0.80 ea



21-0501

Nut for 60-3539 screw, above.
$0.80 ea



60-4154

Spire nut for side covers

$1.60 ea

21-7020

Spire nut for side panels, 1978 & up

$0.80 ea





60-4152

Side cover blanking plug, brake drum plug 71-72 models,  replaces #60-2594, 60-3669

$3.50 ea





82-6673-

Side cover mounting grommet

$1.95 ea

97-4577

 Switch console, 1979 models

$47.00 ea



82-8091

Battery tray rubber pad

$4.75 ea


82-7510only one in stock

Peg, oil tank, battery box, UNF

$4.50 ea



82-6039-

Battery tray mounting grommet, 3 req'd, 1971 later

$1.95 ea



82-9561

Coil mounting grommet 650/750

$3.55 ea



82-9353

Battery tie down strap, 12"

$4.45 ea




Buckle, battery strap , 71-75 models

$15.90 ea




Battery strap buckle

$5.00 ea


Battery strap buckle

$7.00 ea



71-1149

Breather pipe, engine to "T" piece. Round shape. 1970 to 1973 650 & 750 models

$5.95 ea





83-5285

Breather pipe, engine to "T" piece. "D" shape. 1974 to 1979  750 models

$3.50 ea




71-2349

Breather pipe, from frame neck to "T" piece, all 1971 & up 650 & 750

$7.50 ea




Vent pipe, Oil tank to T, 500, 650 models

$5.90 ea





83-1614-

Breather pipe, "D" shaped, rear fender, 39", 500,650 models

$16.00 ea





83-4813

Breather pipe, "D" shaped, rear fender, 44", 750 models

$17.00 ea





83-1610 -

"T" piece, breather hose, 1971 to 1973 500,650, 750 twins

$31.00 ea





83-5290

"T" piece, breather hose, 1974 & later 750 twins

$14.70 ea



83-1615-

Clip for D shaped hose

$2.90 ea



97-3894-

Screw for clip # 83-1615

$0.95 ea

82-4717-

Nut for #97-3894 screw, above.

$0.95 ea





83-4086-

Captive nut, top motor mount to frame

$8.70 ea





83-2846-

Spacer, engine mount, bottom, LH

$7.25 ea





83-2847-

Spacer, engine mount, bottom, RH

$6.00 ea





83-2848-

Spacer, engine mount, front, LH

$3.65 ea





83-2849-

Spacer, engine mount, front, RH

$3.65 ea
